Overview
Copper wire stripping machine is for various waste wires that are not suitable for processing by wire stripping machines, such as various automobile circuit lines, motorcycle lines, battery lines, televisions, washing machines, refrigerators, air conditioners and other household appliances lines, communication lines, computer lines, etc. At present, other copper wire stripping machines in China can only produce wires with thicker copper wire diameters, and the plastic skin separated from the hairy wires contains a higher copper wire. The successful development of this model makes up for this shortcoming. The overall structure of the machine is fully automatic separation, and only one person needs to feed the material to produce, which saves labor and does not take up space. Advanced dust collection device, dry separation, the separated finished products can be sold directly. This model is the most advanced waste wire separation equipment in China.
Scope of application
Various automobile circuit lines, motorcycle lines, battery lines, televisions, washing machines, refrigerators, air conditioners and other household appliances lines, communication lines, computer lines and other waste wires that are not suitable for processing by wire stripping machines.
Working principle

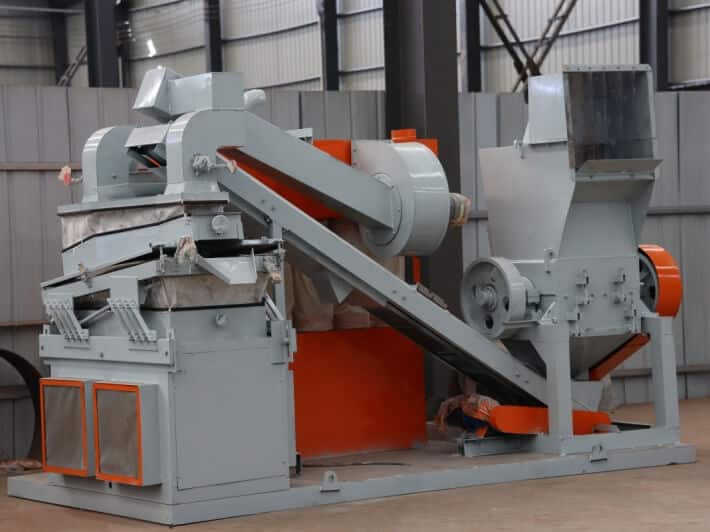

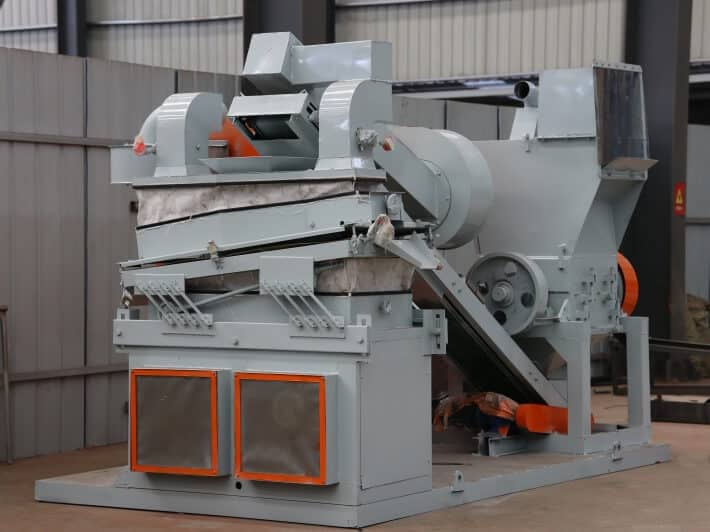

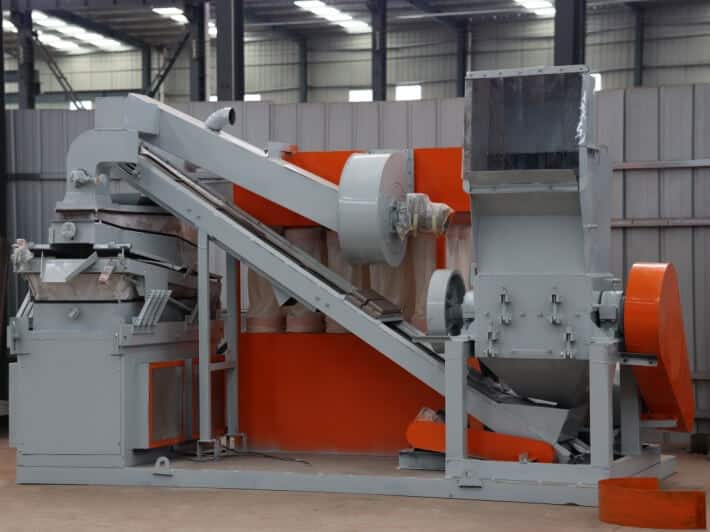

This machine consists of a crusher, a fan conveyor, a vibrating screen, a dust collector, and electrical control. After the waste wires and cables are shredded and crushed, they become plastic fragments and copper rice, which are made to move forward on the screen surface waveform. The core skin is separated by the dual effects of airflow suction and linear vibration of the screen box, and the copper rice, plastic, and the mixture of copper and plastic are sent out from different outlets. The dust reaches the dust collector through the air duct. The vibrating screen is controlled by frequency conversion, and the vibration frequency is adjusted according to different working conditions. The air volume is controlled by the regulating valve, and each action is controlled by buttons. It is easy to operate and maintain, with a separation accuracy of 98%. It is an ideal choice for medium-sized recycling processing plants.
Features
- Compact structure, beautiful appearance, reasonable layout, easy installation;
- PLC control is adopted to make the equipment feed evenly, and intelligent operation makes the operation easier, saving time and effort, and ensuring the stable operation of the equipment to the greatest extent;
- The crusher, sorting equipment and dust collection equipment adopt platform combination, which makes the equipment easy to move and transport, and increases the flexibility of the equipment;
- The crusher rotor adopts alternating knife shaft, with high production efficiency, low noise and stable operation;
- The sorting efficiency of the airflow separator is as high as 95%-99%;
- The return system allows the semi-finished product to be crushed twice, ensuring the complete separation of metal and non-metal;
- The dust collector effectively suppresses dust overflow and has high dust removal efficiency.
Raw materials
Product flow chart
The clean rate of separation is directly proportional to the diameter of a single copper wire. The larger the diameter of a single copper wire, the cleaner the separation between the copper wire and the plastic, while the smaller the diameter of a single copper wire, the worse the separation effect between the copper wire and the plastic.
